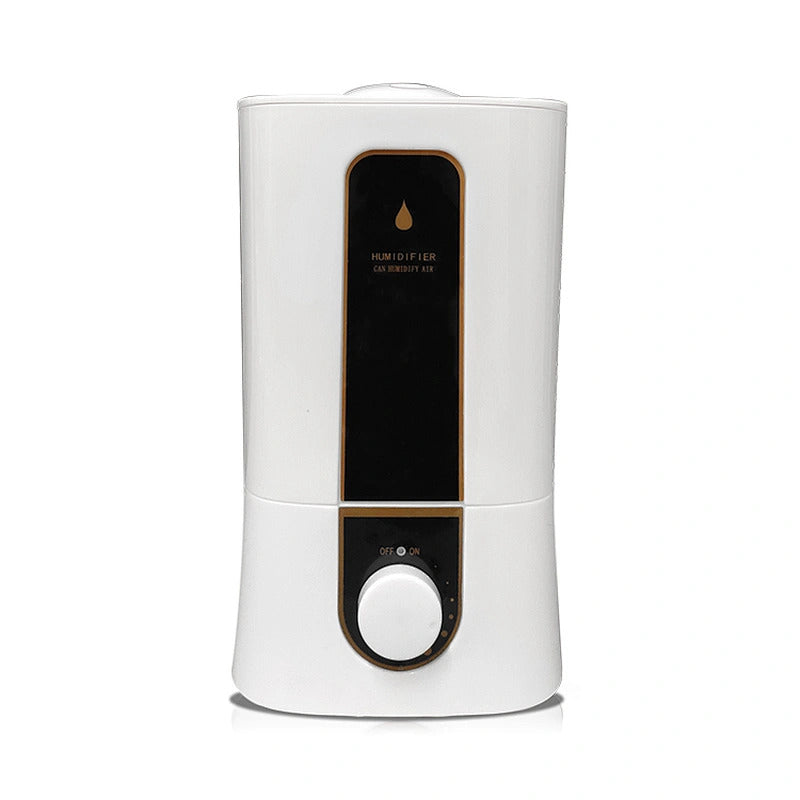

HDL-966-030 4L Air Humidifier

　　Model: HDL-966-030

　　Power supply: AC220V/50Hz

　　Rate power: 25W

　　Water tank capacity: 4L

　　Maximum atomization: 380ML/H

　　Working noise: ≤36dB

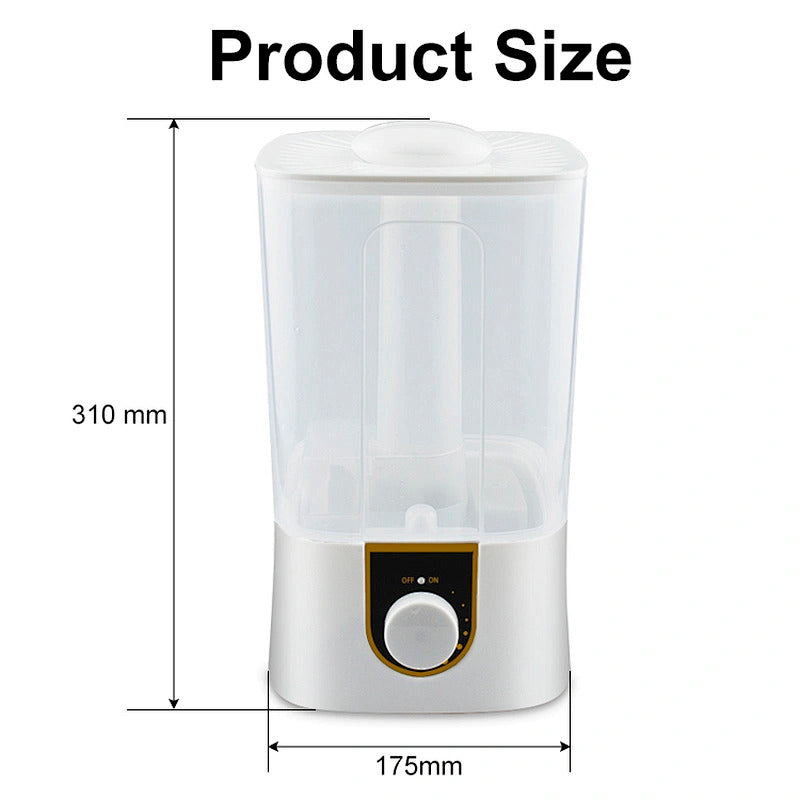

　　Machine size: 17.5*17.5*31cm;

　　Pack size: 20*18.5*33cm;

　　Pack detail: 16Pcs/CTN;

　　CTN size: 72*46*68cm;

　　Gross weight: 17.85kg/CTN;

　　Loading information: 2112Pcs/20GP;

　　4416Pcs/40GP;

　　5136Pcs/40HQ;

　　Place the machine horizontally in a suitable place, take out the upper cover, pull up the water tank

　　and take out the sponge pad under the base float, align the water tank to the base and add water directly or lift the water tank to add water, add purified water or clean tap water. Connect to AC220V/50Hz power supply, the power light turn"red", indicates that the water tank is filling water into the water sink, when the light turns"green", indicates that the water sink is full, the machine can work normally then. At that time, turn the mist volume adjustment knob to change the spray volume at the mist outlet, it can be set according to the dryness of your room. When there is no water in the water tank, the built-in safety device will automatically disconnects the atomization circuit. At this time, there is no mist at the mist outlet. At the same time, the red indicator light is on. If need continued use, please cut off the power, and refill the water tank.

　　Don't add water with temperature above 40℃ to the water tank and sink to avoid discoloration or deformation.

　　Don't let water flow into the body from the mist outlet. If there is water outside the body, please wipe it with a dry cloth.

　　When the indoor temperature is below 0℃, please pour out the water in the water tank and sink to avoid damage to the machine after the water freezes.

　　Please do not put metal products, chemicals, detergents etc things into the sink, otherwise will occur poor atomization.

　　When there is much water in the tank, please don't move it often, otherwise the water will overflow into the machine and cause failure.

　　Please don't place the humidifier in the place directly radiated by strong light and hot wind.

　　Don't put the humidifier in the air outlet, and try to stay away from furniture and electrical products./ HDL-966-030 4L Air Humidifier

　　Please don't add water to the body sink directly.

　　When not in use for a long time, please cut off the power supply and unplug the plug.

　　Don't pour the remaining water of the water tank when it is powered on, otherwise the transducer will be broken.
